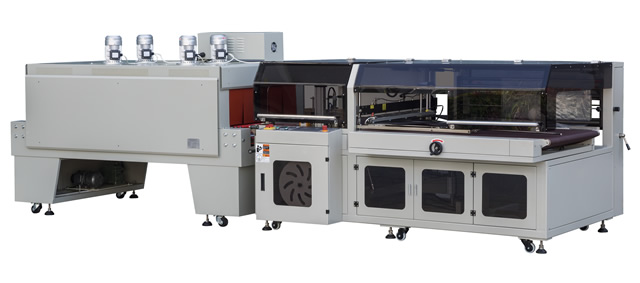

BTH-1000+BM-1000 Automatic side sealing heat shrink packaging machine



product description:
This machine is suitable for packaging wider and longer items (such as wooden floors, photo frames, aluminum profiles, etc.). It adopts the most advanced imported PLC programmable controller with safety protection and alarm devices to ensure the stability of the machine's high-speed operation. Various setting operations can be easily completed on the touch screen. With side seal design, the product packaging length is unlimited, and the height of the sealing line can be adjusted according to the height of the package. Equipped with imported detection photoelectric, one set of horizontal and vertical detection, easy to switch and choose.
Performance characteristics:
1. Adopt the side sealing design, the side sealing knife can seal continuously, and the length of the packaged product is not limited, so that the packaging range is wider.
2. The height of side seal and horizontal seal can be adjusted up and down, and the sealing line can be adjusted to the center position according to the height of the package.
3. Using Omron PLC programmable controller and touch screen control, various settings and operations can be easily completed on the touch screen.
4. The sealing and cutting knife adopts American DuPont Teflon anti-stick coating, and the sealing will not crack or coking; the sealing and cutting knife has an automatic protection function to prevent the packaging from being cut by mistake.
5. Equipped with an independent and arbitrarily movable pinhole venting device to make the packaging effect more beautiful.
6. Equipped with American Bonner brand detection photoelectric, one set of horizontal and vertical detection, switch options to pack thinner and smaller items.
7. Adjustable film guide device height and feeding and conveying platform can pack products of different widths and heights without changing the mold and bag maker.
The main technical parameters:

Model

BTH-1000

BM-1000

Maximum packaging size

(L) Unlimited (W+H)≤950mm (H)≤250mm

(L)2000×(W)1000×(H)300mm

Maximum sealing size

(L) Unlimited (W+H)≤1000mm

(L)2000×(W)1200×(H)400mm(Chamber size)

Packing speed

1535 Packs/minute

0-30m/min

Power supply and total power

220V/50Hz  3kw

380V/50Hz  20kw

Maximum current

6A

40A

Use air source

5.5kg/cm3

/

Machine weight

950kg

500kg

Machine dimensions

(L)2644×(W)1575×(H)1300mm

(L)2250×(W)1460×(H)1520mm
